VSThermo VST 80×140
Specifications
Material EPS
Density 150 kg / m³ +/-1%
Thermal conductivity 0,04 W / (m *°C )
EN 13163:2019
Mounting length 1180 mm
Mounting width 140 mm

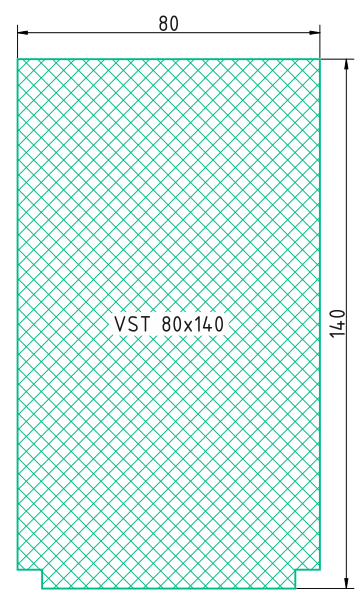

Linear dimensions 80×140×1200
Compressive strength 1900 kPa +/-5%
(10% of linear deformation)
EN 13163: 2019
Fire resistance Class E
EN 13501-1:2016
Water absorption during 0,5%
prolonged full immersion,
% by volume
EN 13163:2019
Hardness according 80 +/- 2 units
to Shore A, in units
EPS-EN 13163-L1-W2-T2-S2-P4-CS(10)1900-WL(T)0,5
Product description:

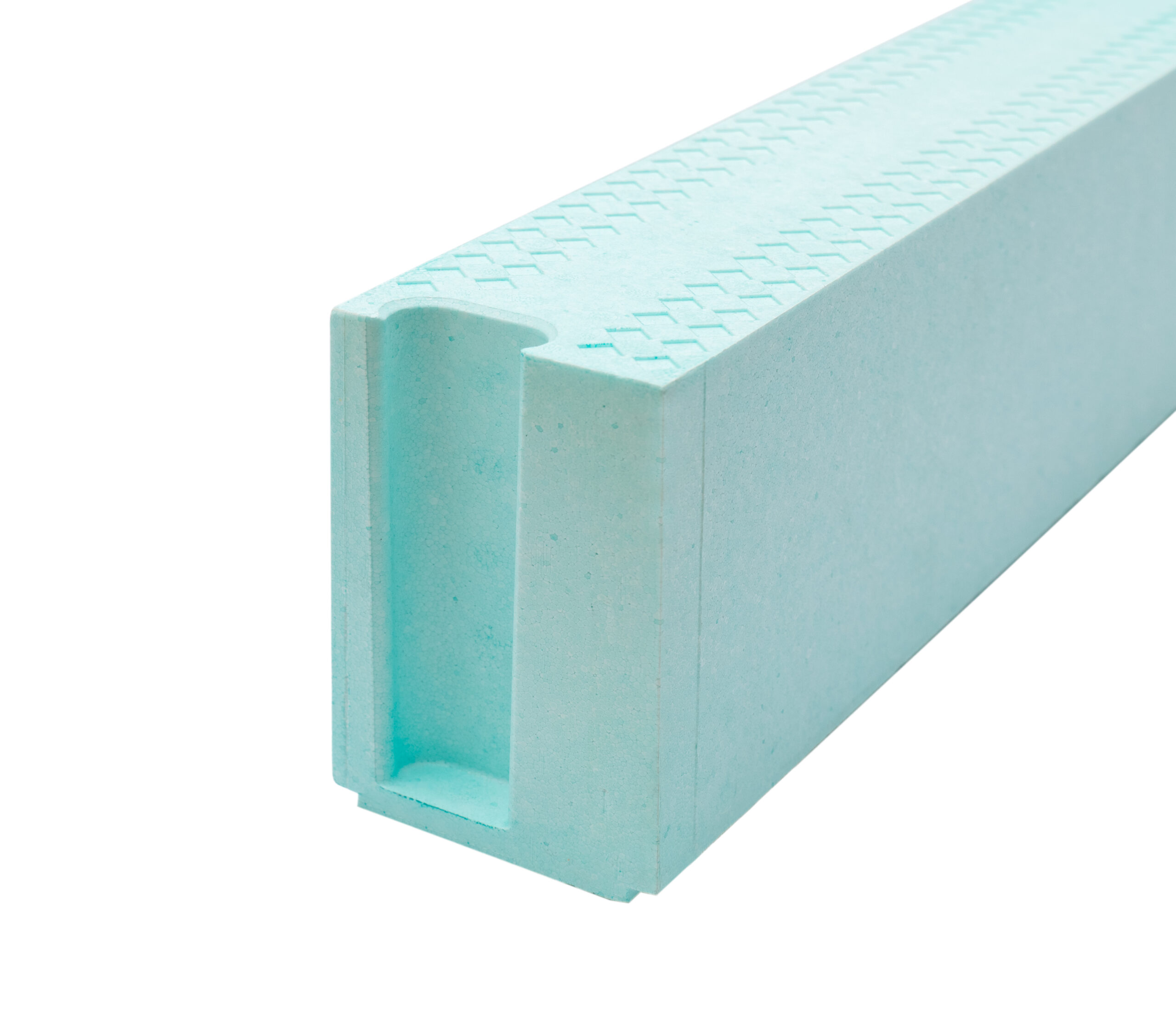

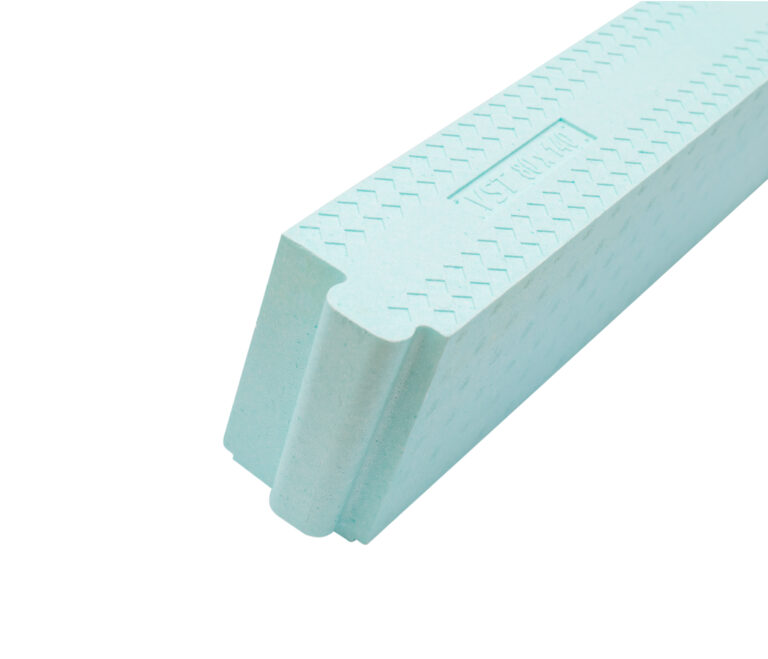

Thermal insulation profile VST 80×140 is a solution for mounting of windows, doors and facades in the thermal insulation layer of a building.
It provides a 140 mm extension of the window constructions relative to the core of the building envelope.
The optimal solution for most profile systems with an installation width of ≥70 mm.
Application area:
For installation of windows, doors and facades in the thermal insulation layer of a building.
